Mage Pro Version Control

Mage Pro’s version control workflow has three parts:

1. Authentication — Connect your Git host to Mage (OAuth with GitHub, Bitbucket, GitLab, or Azure DevOps; HTTPS with a personal access token; or SSH). You do this in the Deployments app, but it also enables the Version control terminal.
2. Deployments — Deploy commits to your Mage Pro cluster or workspace from the visual Deployments app.
3. Version control terminal — Run Git in the browser (push, pull, branches) once you are connected.

​

1. Authentication

Authentication is shared by the Deployments app and the version control terminal. Configure it in Deployments → open Connect repository or deployment Setup → Connection → Authentication type. Until this is set up, you cannot use Git-based deployment or the terminal. Mage Pro supports three authentication types: If you change authentication type, save authentication settings before continuing with the rest of the connection configuration. Switching types clears the credentials from the other method in your deployment settings.

​

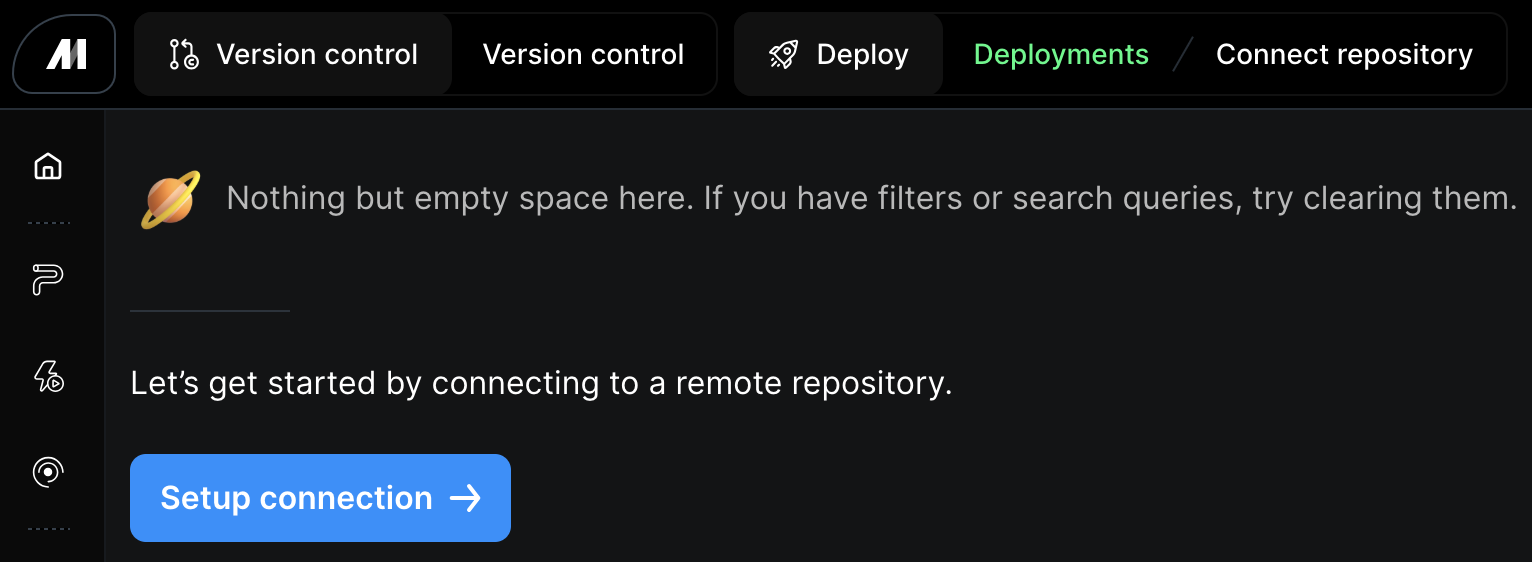

Open the connection UI

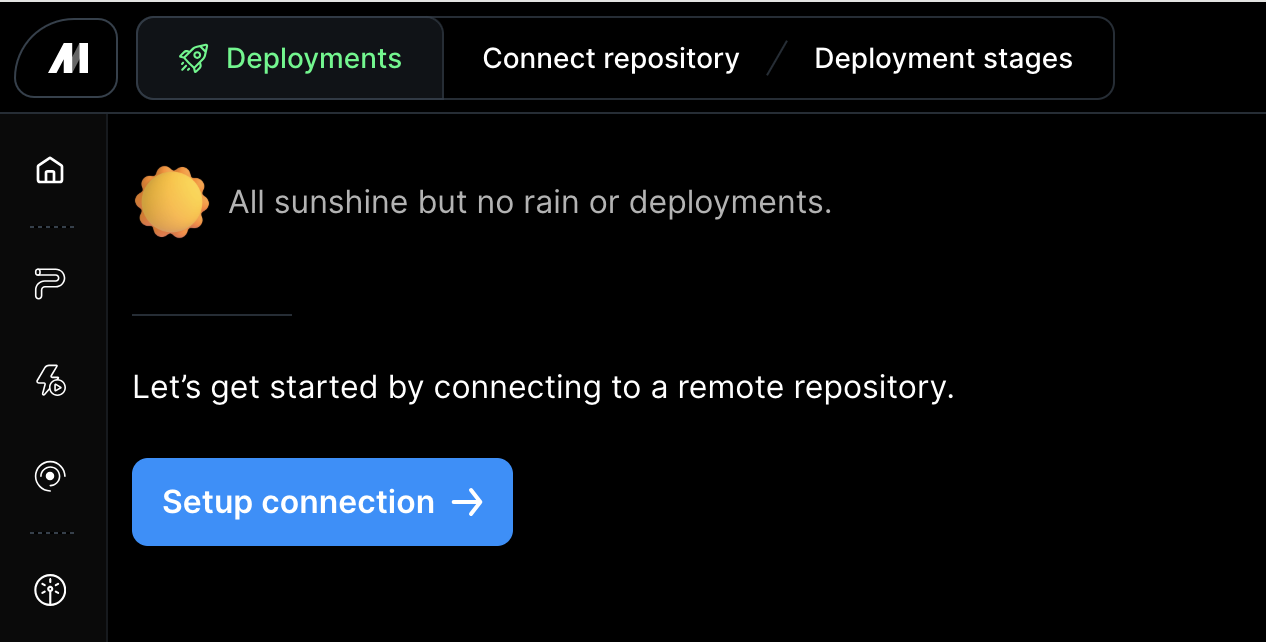

From the Home page, select Deployments in the left-hand navigation menu to access the Deployments interface. Click the Setup connection button to begin syncing with your code repository. Mage Pro provides two main applications for version control and deployment:

1. Deployments App: Deploy code from Git commits to your Mage Pro cluster
2. Version Control Terminal: Push/pull code and manage branches using Git commands

​

1. Deployments App

The Deployments App is your primary tool for deploying code from Git commits to your Mage Pro cluster. It provides a visual interface for managing deployments across different environments.

​

1.1 Authentication

First, authenticate with your Git provider in the Deployments application to enable version control and deployment features.

​

Access Deployments

From the Home page, select Deployments in the left-hand navigation menu to access the Deployments interface. Click the Setup connection button to begin syncing with your code repository.

​

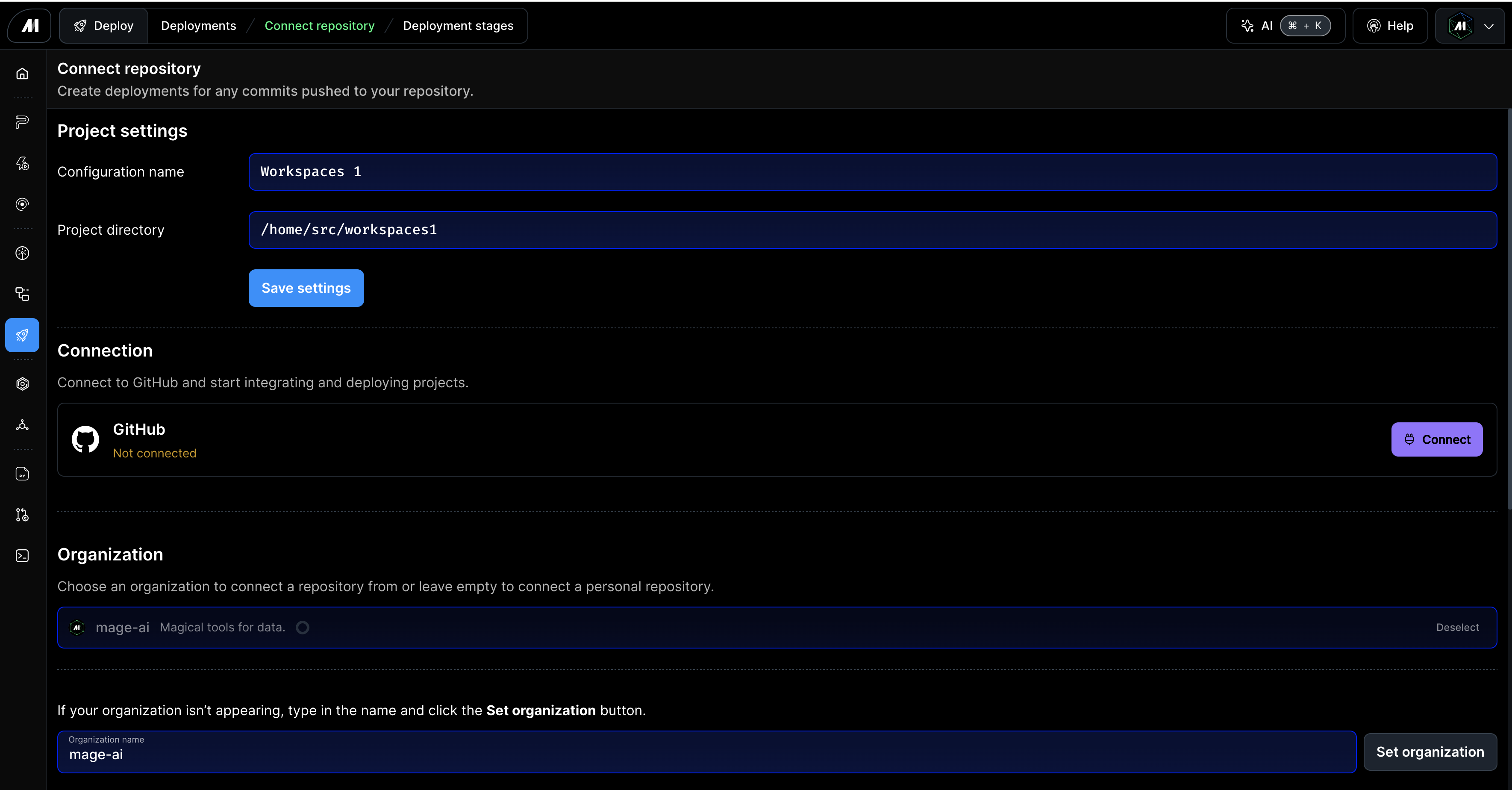

Project settings

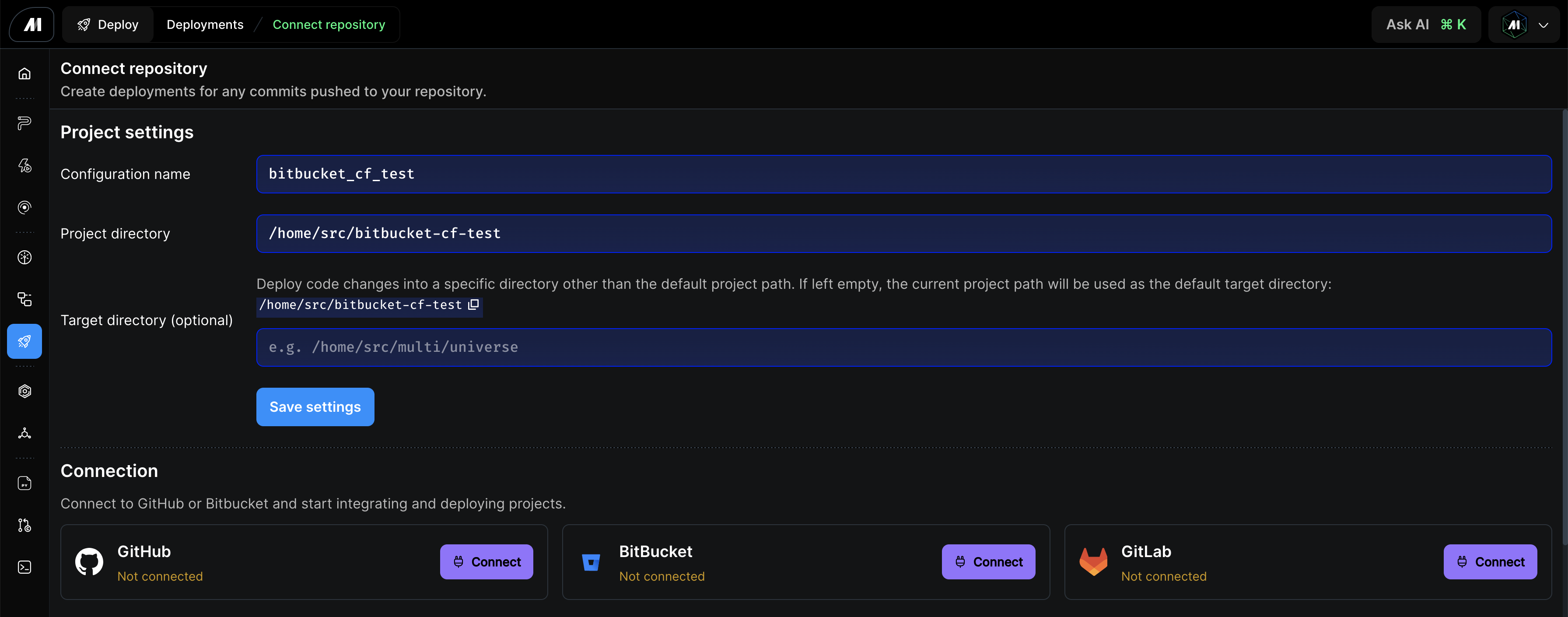

Fill in the Project settings fields at the top of the Connect repository page, then click Save settings before configuring authentication below.

• Configuration name — a label for this deployment configuration.
• Project directory — the user code path for your project. The default in Mage Pro is /home/src/default_repo. If you changed the USER_CODE_PATH environment variable in the Mage Cloud Management Portal, set this field to match.
• Target directory (optional) — the directory code changes are deployed into. If left empty, the project directory is used. For a nested repository you may want to set this to /home/src.

​

Configure Repository Settings

Once you are in the connect repository UI, take the following steps: Step 1: Set your directory as the user code path you intend to use for your project.

• In Mage Pro the default directory will be /home/src/default_repo.
• If you changed the USER_CODE_PATH environment variable in the Mage Cloud Management Portal, your directory will need to reflect that change.

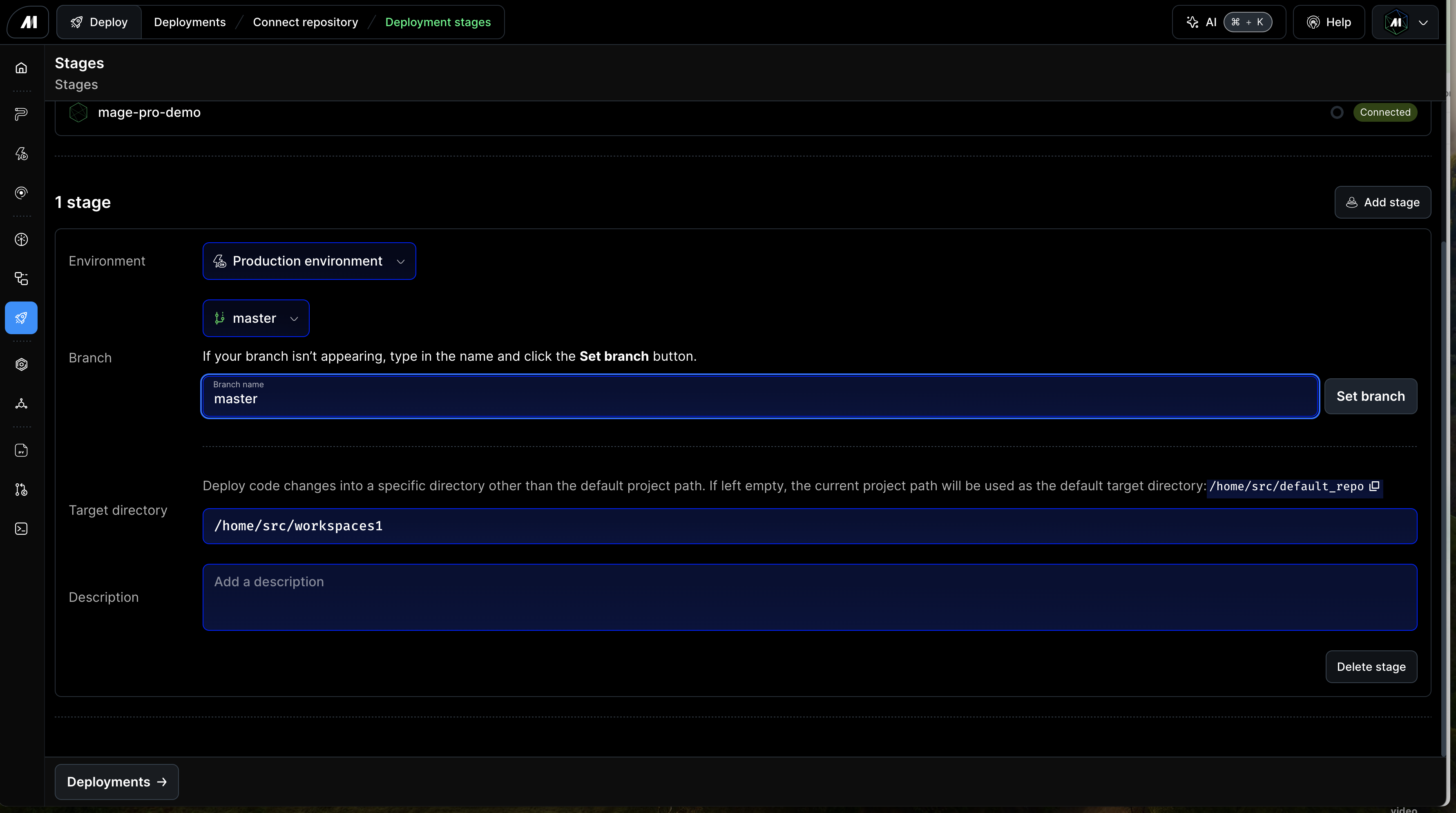

Step 2 (optional): Set your target directory for your deployment if it will be different from your top level directory.

• If you have a nested GitHub project, you may want to set the target directory to /home/src

After clicking Save settings, proceed to the Connection section below to set your authentication type and connect your provider.

​

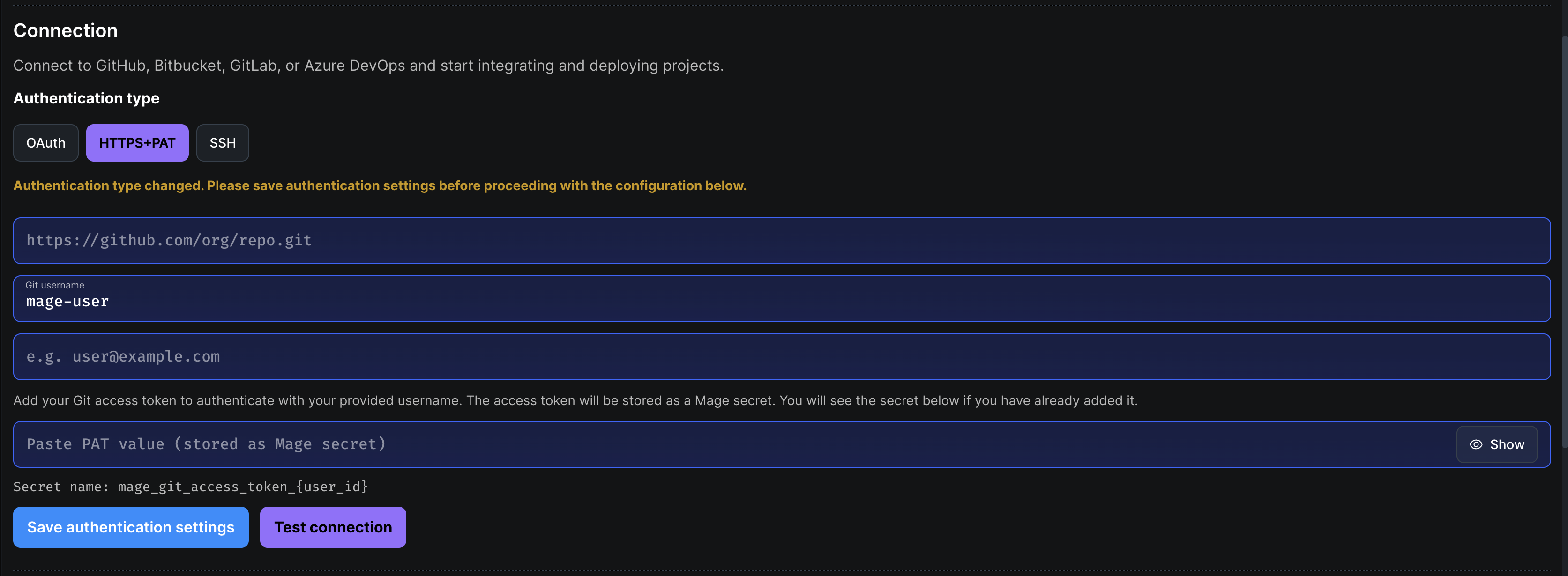

HTTPS and personal access token (PAT)

1. Under Connection, set Authentication type to HTTPS+PAT.
2. Enter the remote repository URL in HTTPS form (for example https://github.com/your-org/your-repo.git). The UI derives owner and repository name from this URL.
3. Enter a username and email for Git commit authorship. These are also used as HTTP credentials: the username is your Git host account name and the PAT is sent in place of a password.
4. In your Git host, create a personal access token (or app password) scoped to at least clone, fetch, and push. Scope names differ by provider — for example, GitHub requires the repo scope; GitLab requires read_repository and write_repository; Bitbucket uses the repository:write permission.
5. Paste the token into Personal access token and click Save authentication settings. The token is stored as a Mage secret named mage_git_access_token_{user_id} (where {user_id} is your Mage user ID).

HTTPS+PAT uses your stored credentials for Git in the version control terminal the same way OAuth does.

​

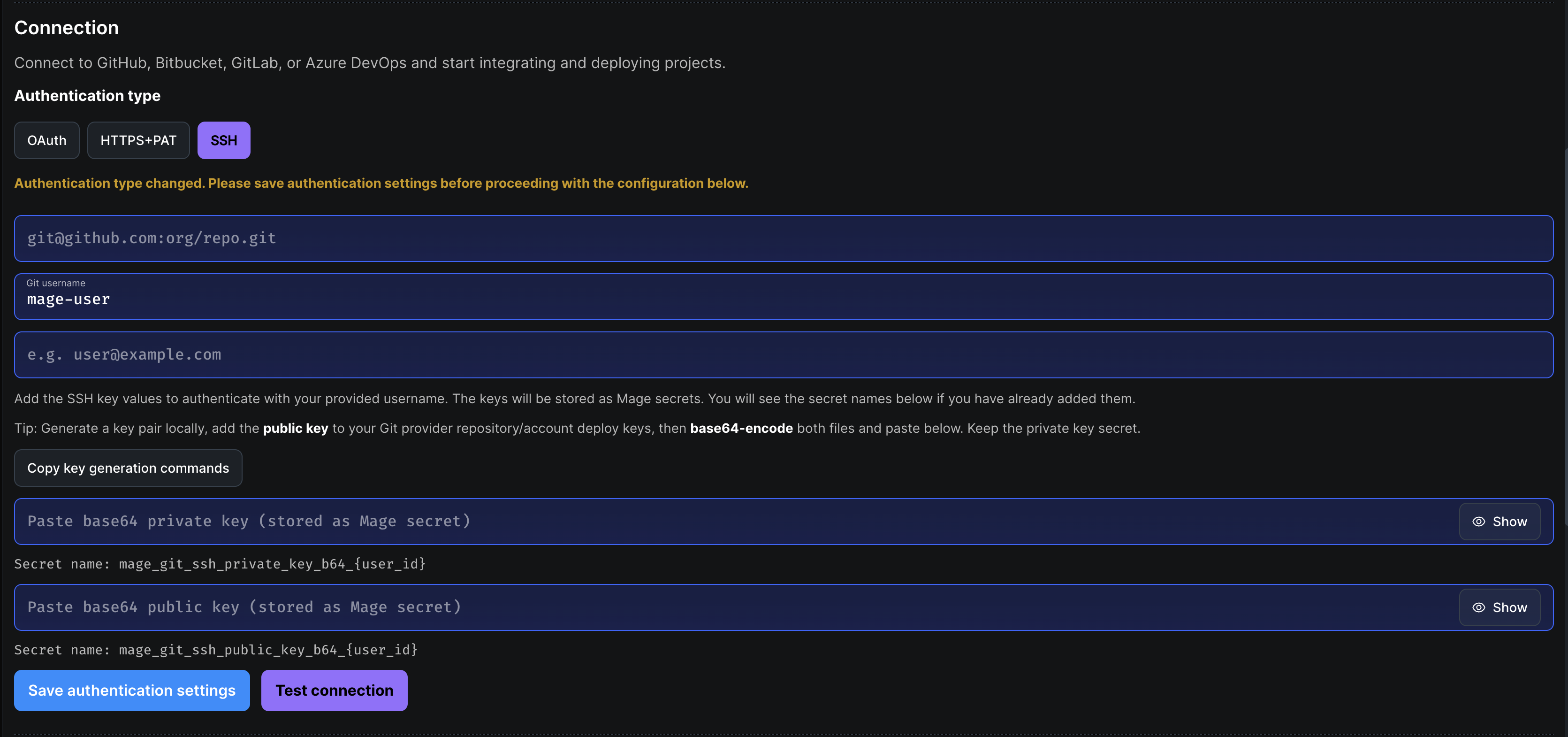

SSH key authentication

1. Under Connection, set Authentication type to SSH.
2. Enter the remote repository URL in SSH form (for example git@github.com:your-org/your-repo.git or a supported ssh:// URL from your provider).
3. Enter a username and email for Git commit identity (as shown in git log), matching what you use for the repository.
4. Add SSH public and private key values. The form expects the key material in base64 (as labeled in the UI). In your Git host, add the public key as a deploy key (repo-scoped) or a user key, with permission to read/write the repo as needed.
5. Click Save authentication settings.

​

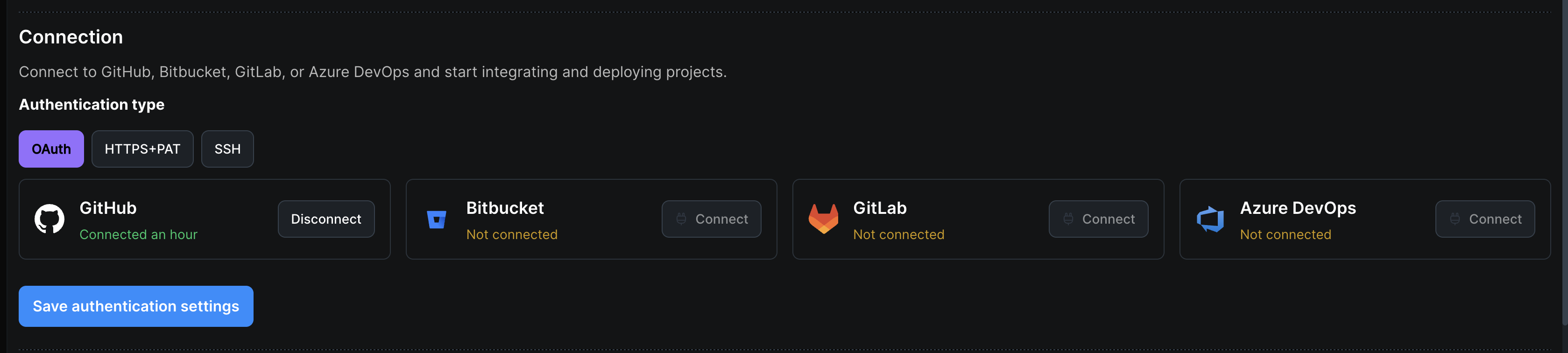

GitHub (OAuth)

Mage Pro supports integration with GitHub repositories for version control, collaboration, and deployments. For HTTPS+PAT or SSH, use PAT or SSH key instead of the GitHub Connect OAuth flow below. Connect to GitHub using OAuth tokens: Step 1: Click the Connect button to the right of the GitHub connection.

• This will take you to the GitHub sign-in authentication.

Step 2: Sign in with your GitHub login credentials.

• After authenticating you will return to the Mage Pro deployment app.
• You should now see that you are connected to GitHub.
• Click Save authentication settings.

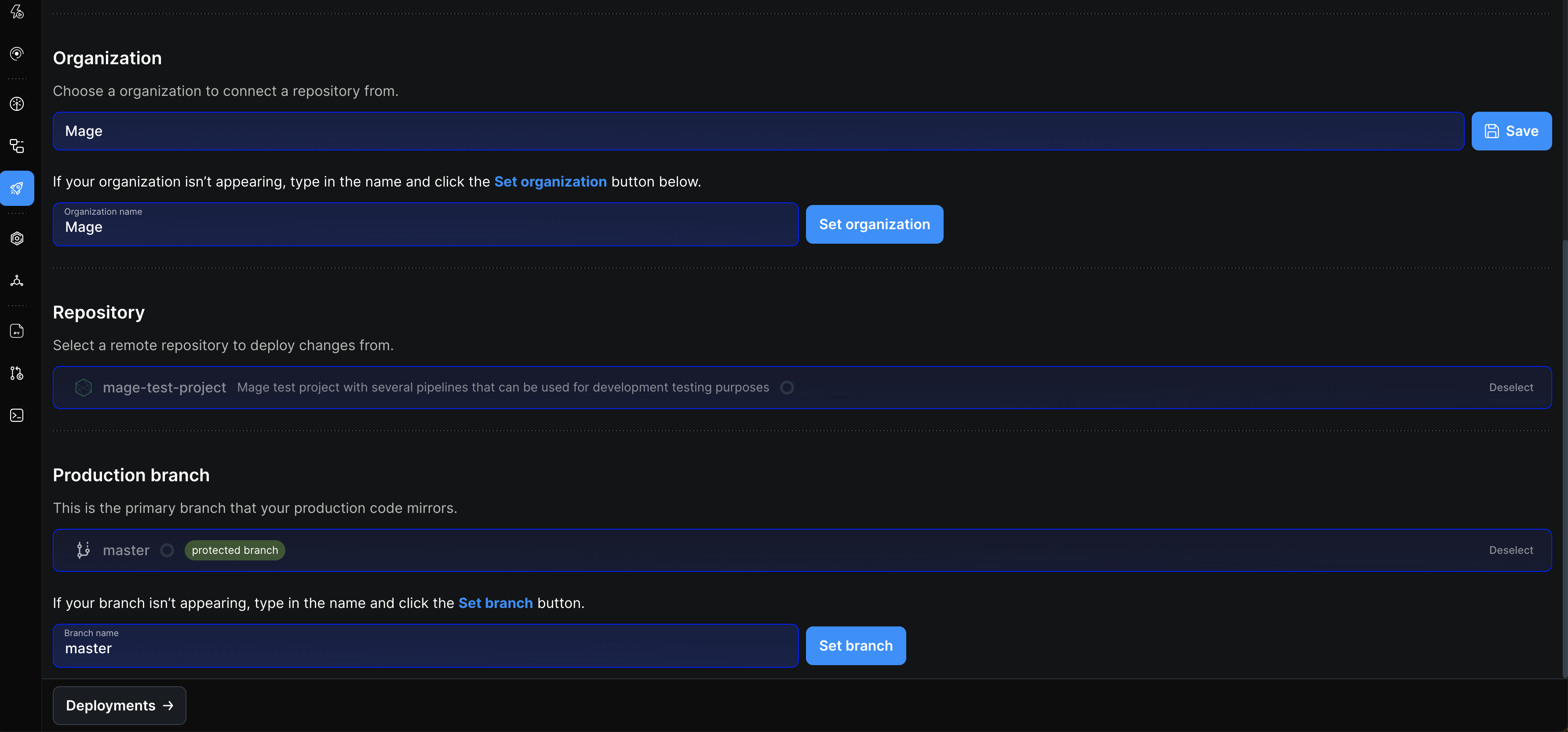

Step 3: Select your GitHub organization from the list.

• If your organization isn’t appearing, enter the name in the Organization name field and click Set organization.

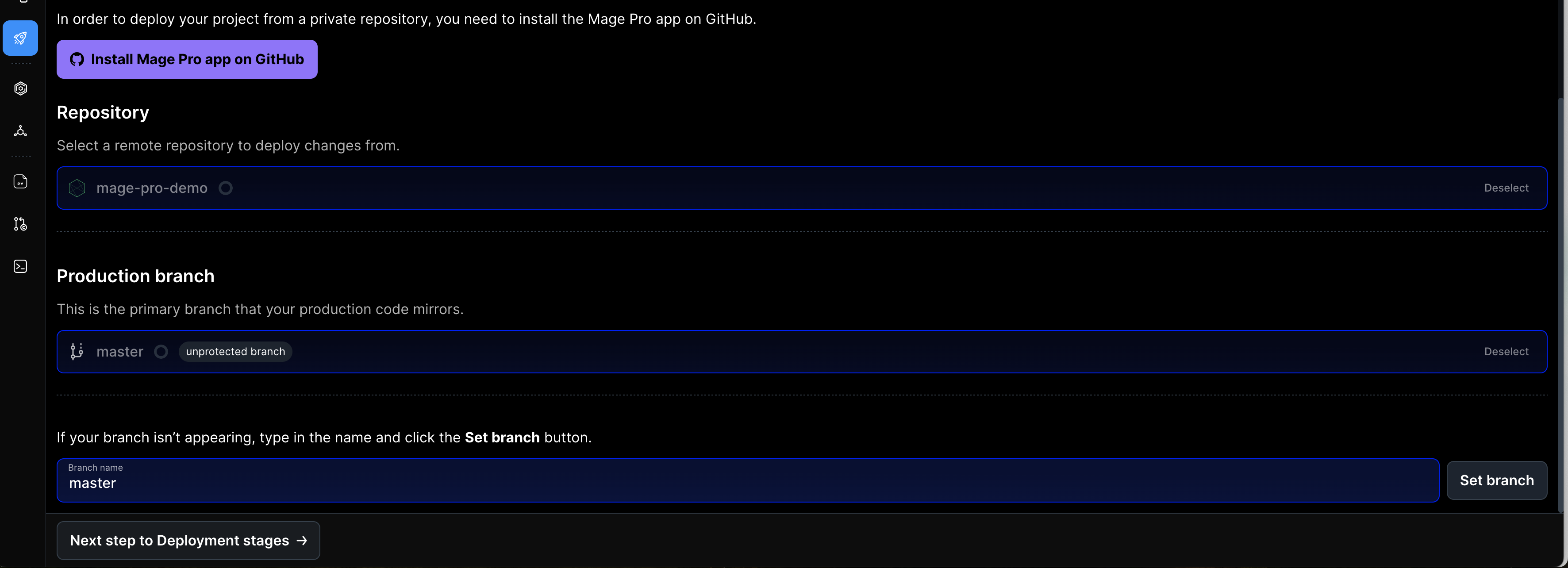

Step 4: Select the repository from the dropdown.

• You should see all your GitHub repositories if you authenticated correctly.

Step 5: Select the production branch from the dropdown.

• The production branch is the primary branch your production code will mirror.

​

Bitbucket (OAuth)

Mage Pro supports integration with Bitbucket repositories for version control, collaboration, and deployments. For HTTPS+PAT or SSH, use PAT or SSH key instead of the Bitbucket Connect OAuth flow below. Connect to Bitbucket using OAuth tokens:

​

GitHub Authentication

Step 1: Click the “Connect” button to the right of the GitHub connection

• This will take you to the GitHub sign-in authentication

Step 2: Sign in with your GitHub login credentials

• After authenticating you will return to the Mage-Pro deployment app
• You should now see that you are connected to GitHub

Step 3: Select your GitHub organization from the dropdown list.

• If there are no organizations listed, add an organization to the text field below and click the Set organization button

Step 4: Select the repo you want to commit code to by clicking the repository drop down box

• You should see all your GitHub repos here if you authenticated correctly

Step 5: Select your branch (usually main or master) to commit your code to by clicking the dropdown box and selecting the branch name Step 6: Click the “Deployments” button to see a list of commits from your Git hosting vendor, and deploy from the most recent or any specific commit.

​

BitBucket Authentication

Mage Pro supports integration with BitBucket repositories for version control, collaboration, and deployments. Connect to BitBucket using OAuth tokens: Step 1: Set your directory as the user code path you intend to use for your project.

• In Mage Pro the default directory will be /home/src/default_repo.
• If you changed the USER_CODE_PATH environment variable in the Mage Cloud Management Portal, your directory will need to reflect that change.

Step 1: Click the Connect button to the right of the Bitbucket connection.

• This will take you to the Bitbucket sign-in authentication.

Step 2: Sign in with your Bitbucket login credentials.

• After authenticating you will return to the Mage Pro deployment app.
• You should now see that you are connected to Bitbucket.
• Click Save authentication settings. Step 2: Click the “Connect” button to the right of the BitBucket connection
• This will take you to the BitBucket sign-in authentication

Step 3: Sign in with your BitBucket login credentials

• After authenticating you will return to the Mage-Pro deployment app
• You should now see that you are connected to BitBucket

Step 3: Select your Bitbucket workspace from the dropdown list.

• If there are no workspaces listed, enter a workspace slug in the text field below and click Set workspace.

Step 4: Select the repository from the dropdown menu.

• You should see a list of all the repositories in that workspace.

Step 5: Select the production branch from the dropdown list.

• The production branch is the primary branch your production code will mirror. Step 4: Select your BitBucket workspace from the dropdown list.
• If there are no organizations listed, add an organization to the text field below and click the “Set organization” button

Step 5: Select the repository from the dropdown menu.

• You should see a list of all the repositories that were created in the workspace.

Step 6: Finally, select the production branch from the dropdown list

• The production branch is the primary branch that your production code will mirror.

​

GitLab (OAuth)

Mage Pro supports integration with GitLab repositories for version control, collaboration, and deployments. For HTTPS+PAT or SSH, use PAT or SSH key instead of the Connect GitLab OAuth flow below. Connect to GitLab using OAuth tokens: Step 1: Click the Connect button to the right of the GitLab connection.

• This will take you to the GitLab sign-in authentication.

Step 2: Sign in with your GitLab login credentials.

• After authenticating you will return to the Mage Pro deployment app.
• You should now see that you are connected to GitLab.
• Click Save authentication settings.

Step 3: Select your GitLab group from the dropdown list.

• If there are no groups listed, enter a group name in the text field below and click Set group.

Step 4: Select the repository from the dropdown menu.

• You should see a list of all the repositories in that group.

Step 5: Select the production branch from the dropdown list.

• The production branch is the primary branch your production code will mirror.

​

Azure DevOps (OAuth)

Mage Pro supports integration with Azure DevOps repositories for version control, collaboration, and deployments. For HTTPS+PAT or SSH, use PAT or SSH key instead of the Azure DevOps Connect OAuth flow below. Connect to Azure DevOps using OAuth tokens: Step 1: Click the Connect button to the right of the Azure DevOps connection.

• This will take you to the Azure DevOps sign-in authentication.

Step 2: Sign in with your Azure DevOps credentials.

• After authenticating you will return to the Mage Pro deployment app.
• You should now see that you are connected to Azure DevOps.
• Click Save authentication settings.

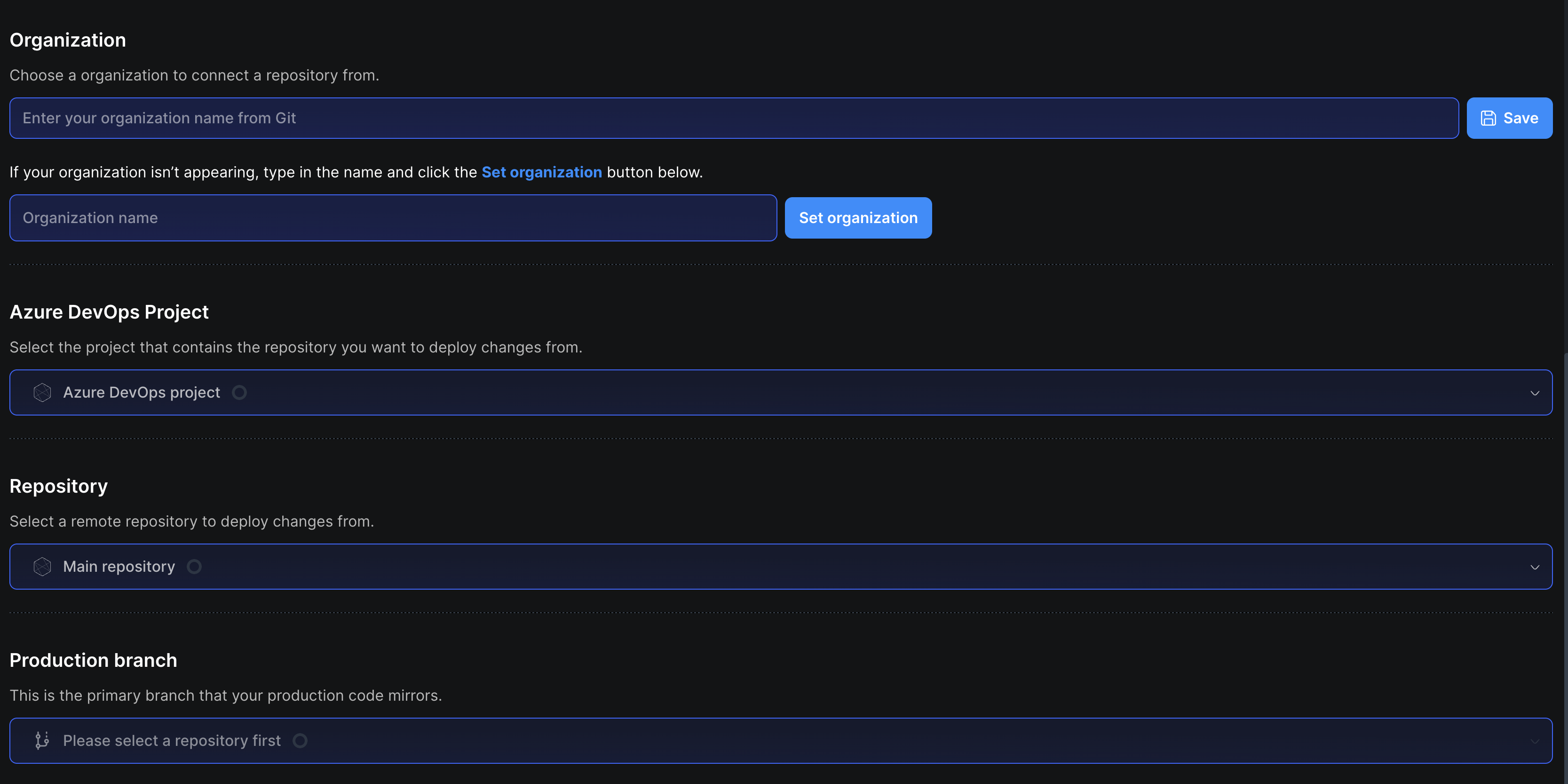

Step 3: Select your Azure DevOps organization from the dropdown, or type the organization name directly in the text field and click Save.

• If your organization isn’t appearing in the dropdown, enter the name in the Organization name field and click Set organization.

Step 4: Select your Azure DevOps project from the dropdown.

• This is the project that contains the repository you want to deploy changes from.

Step 5: Select the repository from the dropdown.

• You should see a list of all repositories in that project.

Step 6: Select the production branch from the dropdown.

• This is the primary branch your production code will mirror.
• If your branch isn’t listed, type the branch name into the text field and click Set branch.

​

2. Deployments App

The Deployments app is the control surface for deploying merged work from Git to your Mage Pro cluster. It assumes you have already completed authentication.

​

Merge pull request and deploy

Once you push code to your Git branch, open your Git provider and merge the pull request. When the merge is done, the deployment is available in the Deployments app. Mage then deploys a chosen commit to your environment:

1. In Mage, go to the Deployments view and open the deployments list (highlighted in green at the top when updates are available).
2. Click Deploy to ship the version you just merged. Use Rollback to deploy an earlier commit if you need to revert.

​

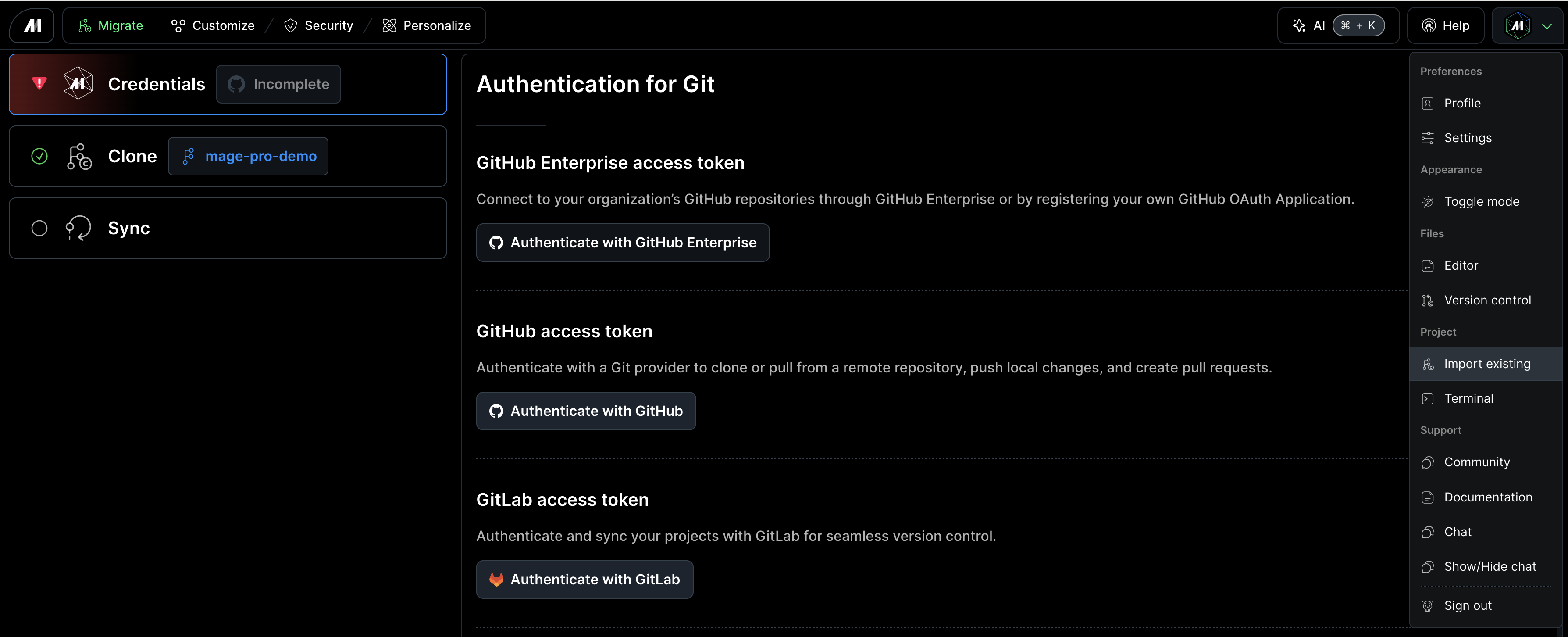

GitLab Authentication

Mage Pro supports integration with GitLab repositories for version control, collaboration, and deployments. Connect to GitLab using OAuth tokens: Step 1: Set your directory as the user code path you intend to use for your project.

• In Mage Pro the default directory will be /home/src/default_repo.

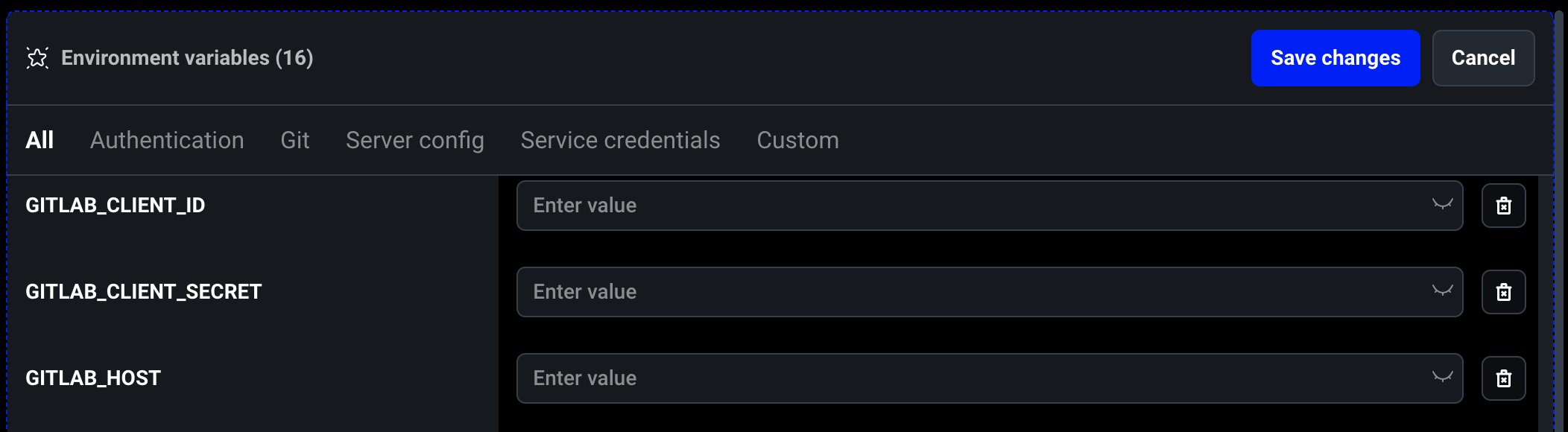

• If you changed the USER_CODE_PATH environment variable in the Mage Cloud Management Portal, your directory will need to reflect that change.

Step 2: Click the “Connect” button to the right of the GitLab connection

• This will take you to the GitLab sign-in authentication

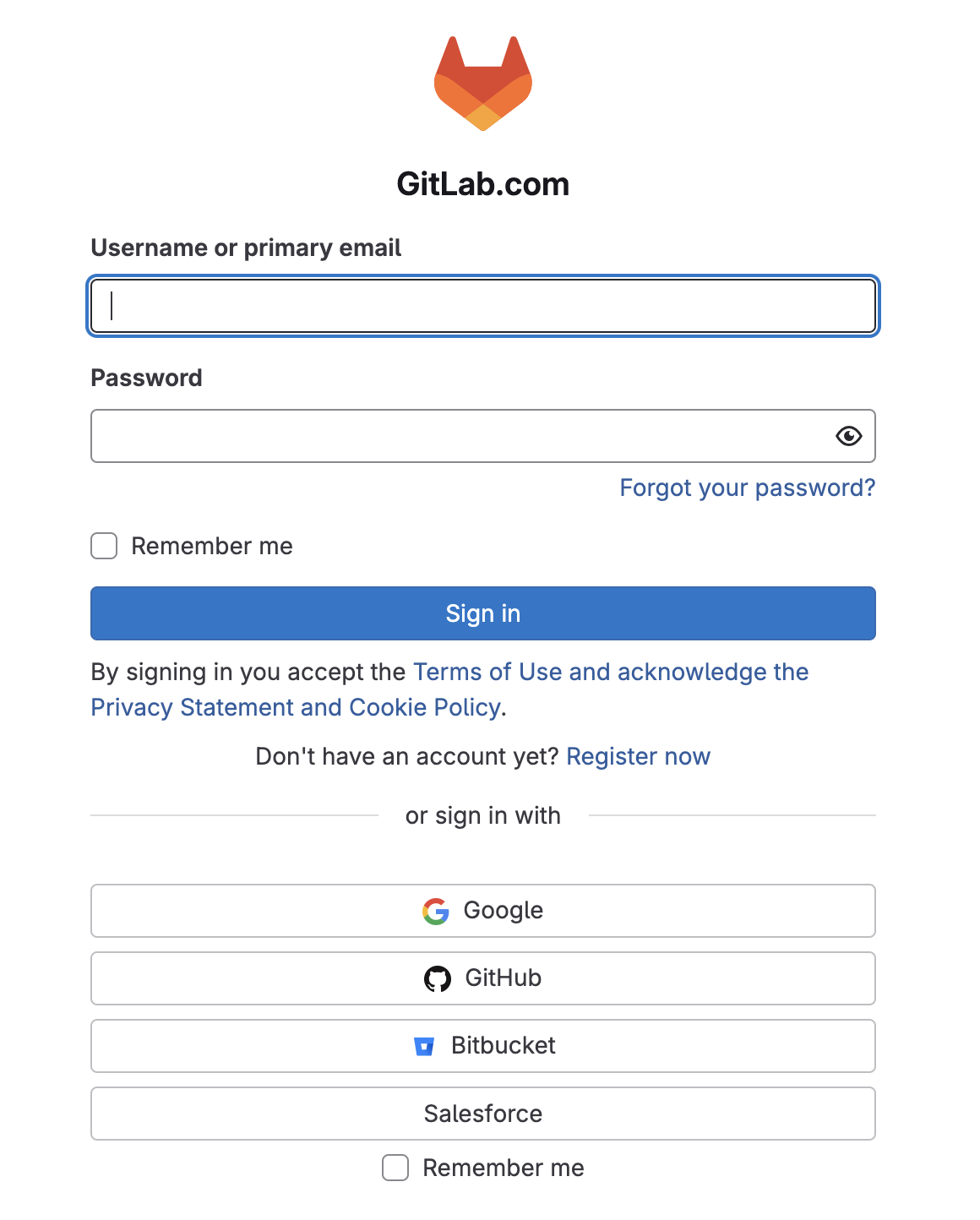

Step 3: Sign in with your GitLab login credentials

• After authenticating you will return to the Mage-Pro deployment app
• You should now see that you are connected to GitLab

Step 4: Select your GitLab group from the dropdown list.

• If there are no groups listed, add a group to the text field below and click the “Set group” button

Step 5: Select the repository from the dropdown menu.

• You should see a list of all the repositories that were created in the group.

Step 6: Finally, select the production branch from the dropdown list

• The production branch is the primary branch that your production code will mirror.

​

1.2 Deploy Code

Deploy code from Git commits to your Mage Pro cluster or workspace using the Deployments application.

​

Merge Pull Request

Once you push code to your Git branch, head to your Git provider and merge the pull request. Once the pull request is merged your deployment will be available in the deployments application interface.

​

Deploy Code

Mage simplifies the deployment of code to production pipelines. Follow these steps to deploy your pipeline’s CI/CD Git branches:

1. Once you have merged the pull request in your Git provider, navigate back to the deployments tab and click deployments highlighted in green in the top
2. Click the Deploy button to deploy the current version you just merged
   • To revert to a previous version, simply click the “Rollback” button to deploy the desired version.

​

3. Version control terminal

Once you have completed Authentication, you can use standard Git in the browser: status, commit, push, pull, and branch operations against your configured remote. With OAuth, the terminal automatically attaches a session-scoped Git credential helper for the connected repository’s provider. HTTPS Git commands can use the OAuth token that is already connected in Mage, so you do not need to run a separate provider CLI login in the terminal. Mage Pro images include GitHub CLI (gh) for optional GitHub auth helper and status checks. GitLab, Azure DevOps, and Bitbucket Git operations use the Mage credential helper or configured SSH/PAT authentication and do not require provider-specific CLIs in the runtime image.

​

Access the Git terminal

• From the home page, open the left navigation and select Terminal.
• When the page loads, type Git commands in the terminal and press Enter to run them.
• If the terminal header shows Authenticate Git, Mage has not detected usable Git authentication for the repository. Select it to open the repository connection page for the current project, complete Git OAuth in Deployments, and then return to the terminal. If you authenticate Git directly in the terminal, Mage hides the action after it detects that Git authentication is available.
• Use tabs to keep multiple shell sessions open. Each tab keeps its own terminal session and working directory, so closing one tab does not interrupt the other tabs.
• The terminal status row shows the active folder, Git branch, and working tree change counts. Autocomplete appears while typing and suggests shell commands, Git subcommands, files, folders, executable commands, and recent command history from the active working directory.
• Terminal prompt timestamps and shell commands use UTC by default. If Display local timezone is enabled for the workspace, new terminal sessions use your browser’s local IANA timezone for the prompt timestamp and the session TZ environment variable.

​

Essential Git commands

• git checkout -b <branch-name>: create and switch to a new feature branch.
• git status: inspect modified, staged, and untracked files.
• git add .: stage changes in the current directory.
• git commit -m "<commit-message>": commit the staged changes.
• git pull: fetch and merge remote changes into the current branch.
• git push origin <branch-name>: push the current branch to the remote repository.

​

Best Practices for Environment Management

​

Development Environment

• Primary Tool - Version Control Terminal:
  • Create feature branches, develop code, commit changes, push to Git
  • Switch between branches, merge changes
• Secondary Tool - Deployments App:
  • Deploy to dev environment for testing and validation
  • Rollback changes or switch to another feature branch (can also be done via terminal)
• Workflow: Develop in Mage Pro → Commit to feature branch → Deploy to dev environment for testing
• Workflow: Develop locally → Commit to feature branch → Deploy to dev environment for testing

​

Staging Environment

• Primary Tool - Deployments App:
  • Pull changes from Git (staging/main/master branch)
  • Deploy to staging environment and run testing
• Secondary Tool - Version Control Terminal:
  • Make hotfixes and push changes to Git
  • Merge feature branches and prepare releases
• Workflow: Pull from Git → Deploy to staging → Run integration tests → Make hotfixes if needed

​

Production Environment

• Primary Tool - Deployments App:
  • Deploy commits from main/master branch
  • Rollback changes if issues occur
  • Monitor deployment status
• Secondary Tool - Version Control Terminal:
  • Emergency patches and hotfixes only
• Workflow: Deploy from main/master → Monitor → Rollback if needed
