Deploy to Azure with Terraform
Overview

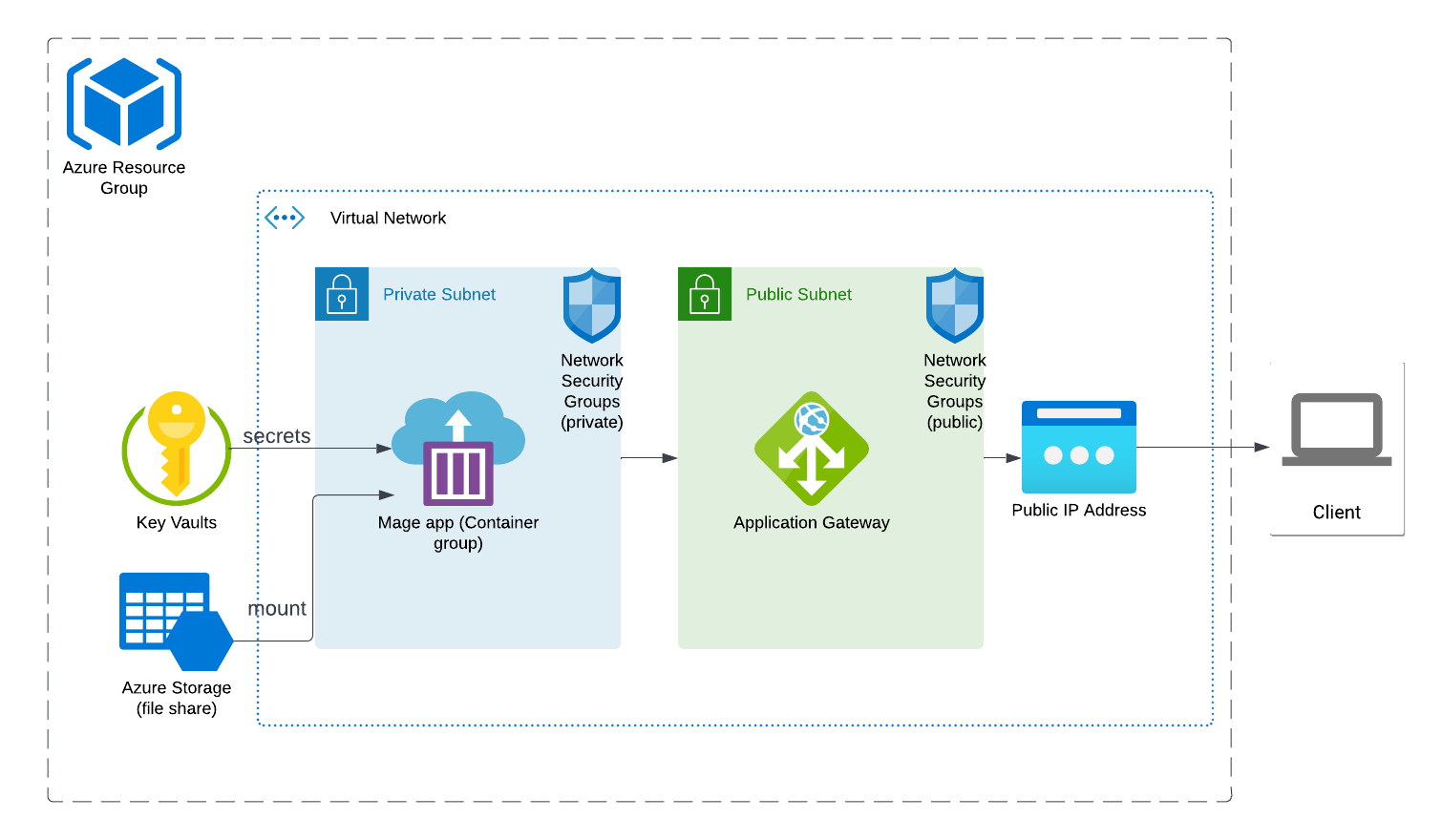

Here is a high level diagram of how Mage interacts with various Azure resources deployed using this Terraform template.
Pre-requisites
- Download Mage maintained Terraform templates.
1. Install Azure CLI
Follow these instructions to install the Azure CLI on your workstation.
2. Log into Azure from CLI
If you don’t already have an account in Azure, create one here.
Once you created an account, from your terminal run the following command to log in:
az login
Your browser will open and have you sign in with an existing Azure account. Once completed, your terminal will output something like this:
[
{
"cloudName": "AzureCloud",
"homeTenantId": "7712a6c4-1684-402f-8d1a-f1bb656e5d40",
"id": "d17fcd32-b98c-4f81-a881-42b8e811a0e8",
"isDefault": true,
"managedByTenants": [],
"name": "Azure subscription 1",
"state": "Enabled",
"tenantId": "7712a6c4-1684-402f-8d1a-f1bb656e5d40",
"user": {
"name": "eng@mage.com",
"type": "user"
}
}
]
3. Customize Terraform settings
Storage account name (REQUIRED)
The storage_account_name
must be unique globally. Before running any Terraform
commands, please change the default
value of variable named
storage_account_name
in the
./azure/variables.tf
file.
variable "storage_account_name" {
description = "Storage account name. It must be globally unique across Azure."
default = "something_very_unique"
}
Key vault name (REQUIRED)
The key_vault_name
must be unique globally. Before running any Terraform
commands, please change the default
value of variable named key_vault_name
in the
./azure/variables.tf
file.
variable "key_vault_name" {
description = "Key vault name. It must be globally unique across Azure."
default = "something_very_unique"
}
Virtual network name
In the file
./azure/variables.tf,
you can change the default
value under app_name
:
variable "app_name" {
type = string
description = "Application Name"
default = "mage-data-prep"
}
Docker image
In the file
./azure/variables.tf,
you can change the default
value under docker_image
:
variable "docker_image" {
description = "Docker image url."
default = "mageai/mageai:latest"
}
Custom Docker images
If you previously tagged a Docker image you built when following this CI/CD guide, you must push that locally tagged Docker image to Azure Container Registry before deploying using Terraform.
Region
In the file
./azure/main.tf,
you can change the location
value under resource_group
:
resource "azurerm_resource_group" "resource_group" {
name = "${var.app_name}-${var.app_environment}"
location = "West US 2"
}
More
Other variables defined in ./azure/variables.tf can also be customized to your needs.
Environment variables for application
Set your environment variables in your running cloud environment by adding the
following under the resource named azurerm_container_group
in the file
./azure/main.tf:
resource "azurerm_container_group" "container_group" {
...
container {
...
environment_variables = {
...
"ENVIRONMENT_VARIABLE_NAME" = "ENVIRONMENT_VARIABLE_VALUE"
}
}
}
4. Deploy
-
Change directory into scripts folder:
cd azure
-
Initialize Terraform
terraform init
A sample output could look like this:
Initializing the backend... Initializing provider plugins... - Finding latest version of hashicorp/azurerm... - Finding latest version of hashicorp/http... - Installing hashicorp/azurerm v3.24.0... - Installed hashicorp/azurerm v3.24.0 (signed by HashiCorp) - Installing hashicorp/http v3.1.0... - Installed hashicorp/http v3.1.0 (signed by HashiCorp) Terraform has created a lock file .terraform.lock.hcl to record the provider selections it made above. Include this file in your version control repository so that Terraform can guarantee to make the same selections by default when you run "terraform init" in the future. Terraform has been successfully initialized! You may now begin working with Terraform. Try running "terraform plan" to see any changes that are required for your infrastructure. All Terraform commands should now work. If you ever set or change modules or backend configuration for Terraform, rerun this command to reinitialize your working directory. If you forget, other commands will detect it and remind you to do so if necessary.
Terraform plan
You can run the following command to see all the resources that will be created by Terraform:
terraform plan
By default, here are the resources that will be created.
-
Deploy
terraform apply
A sample output could look like this:
Apply complete! Resources: 4 added, 2 changed, 0 destroyed. Outputs: id = "/subscriptions/d17fcd12-b89c-4f81-a221-40b8e768a0e8/resourceGroups/mage-data-prep2-production/providers/Microsoft.ContainerInstance/containerGroups/mage-data-prep-production" ip = "20.3.85.62"
-
In your browser, go to
http://[IP_address]/
.Change the
IP_address
to the IP address that was output in your terminal after successfully runningterraform apply
.
Updating Mage versions
After Mage is running in your cloud, you can update the Mage Docker image version by running the following command in your CLI tool:
az container restart --name mage-data-prep-production --resource-group mage-data-prep-production
Misc
Security
By default, terraform apply
will attempt to add your current workstation’s IP
address to the above mentioned security group.
In order to access Mage on Azure from another local workstation, you must add
that IP address to the security group named
mage-data-prep-production-nsg-public
.
Security group name
Your security group might be named differently because you may have changed your virtual network name (e.g.
app_name
). The security group you must add the IP to will end with-nsg-public
.
HTTPS enabling
TBD
Terminate all resources
If you want to delete all resources created from deploying, run the following command:
terraform destroy
A sample output could look like this:
Destroy complete! Resources: 10 destroyed.
