Pre-requisites

First, you’ll need to enable user authentication within Mage. You can find out more about this in the Overview page.

​
Enable Microsoft sign in

There are two ways to enable Microsoft sign in. You can either register an application in your organization’s own Microsoft Entra ID, or use the default Mage application. We recommend registering your own application unless there is a specific reason you cannot do so.
You will need to register an application in your organization’s Microsoft Entra ID.
1

Log into your Azure Portal

2

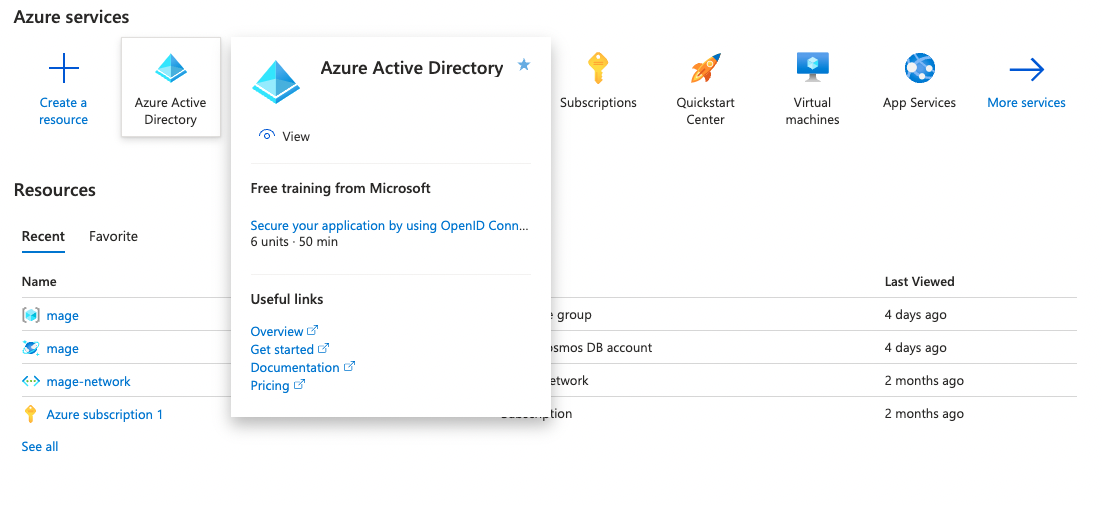

Click into the Microsoft Entra ID service

Azure Active Directory
3

Navigate to the tenant you want users to sign into

4

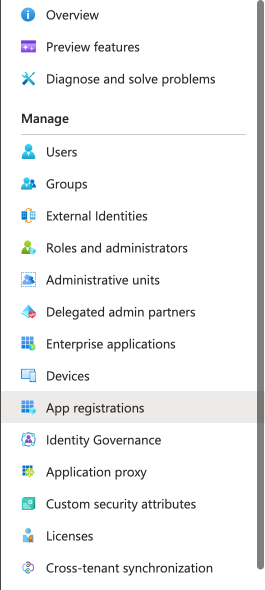

Click App registrations on the left sidebar

App registrations
5

Register a new application for Mage

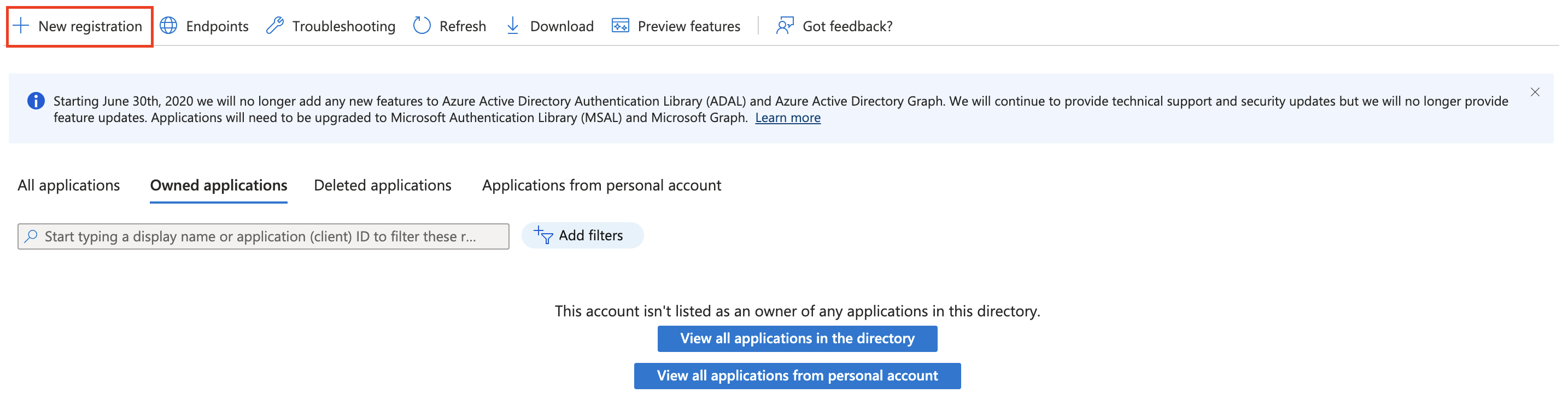

Click the “New registration” button at the top of the page, and fill in the details for your application.
New registration
Make sure you add the following web redirect URI: http(s)://<your-mage-url>/oauth.
6

Create client secret for the application

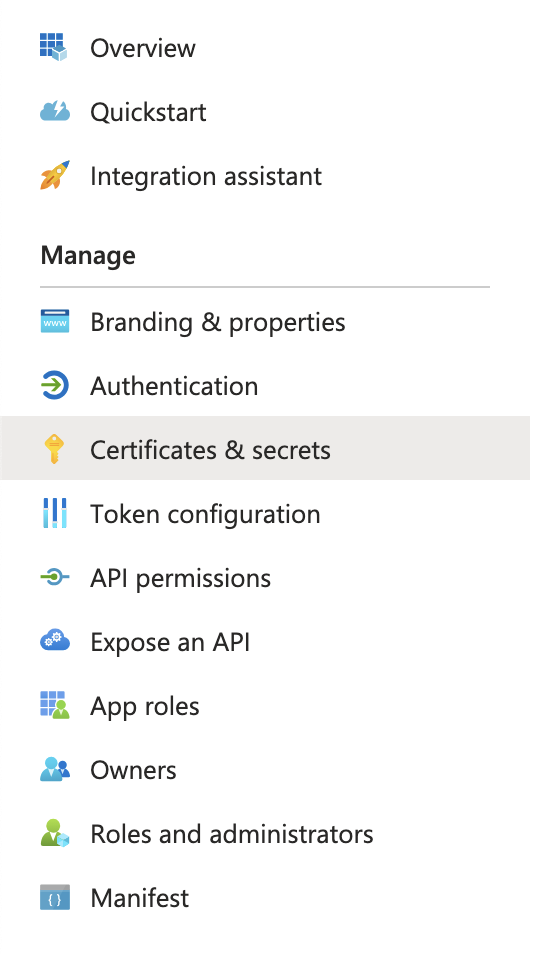

Click into the application you created, and click “Certificates & secrets” in the left sidebar.
Certificates & secrets

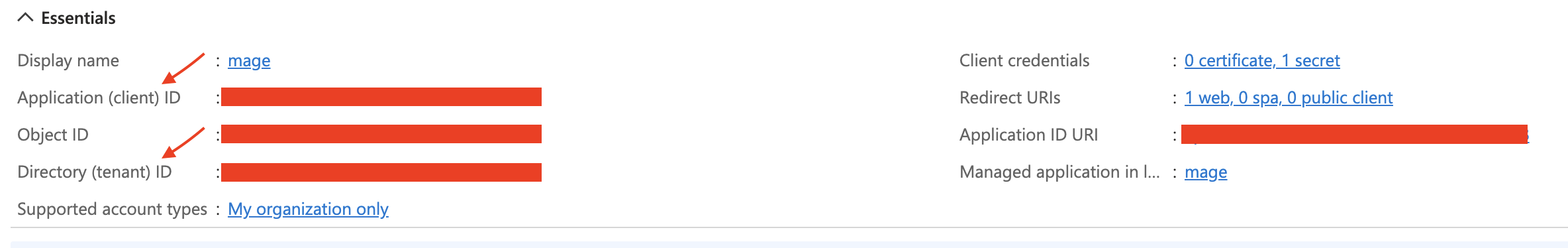

Copy the “Application (client) ID” and the “Directory (tenant) ID” values.
Copy values
Create a new client secret and copy the value.
7

Set environment variable for Mage

Once you have registered your application, you will need to set the following environment variables in your Mage setup.
NameValue
ACTIVE_DIRECTORY_DIRECTORY_ID<tenant_id>
ACTIVE_DIRECTORY_CLIENT_ID<application_client_id>
ACTIVE_DIRECTORY_CLIENT_SECRET<application_client_secret>

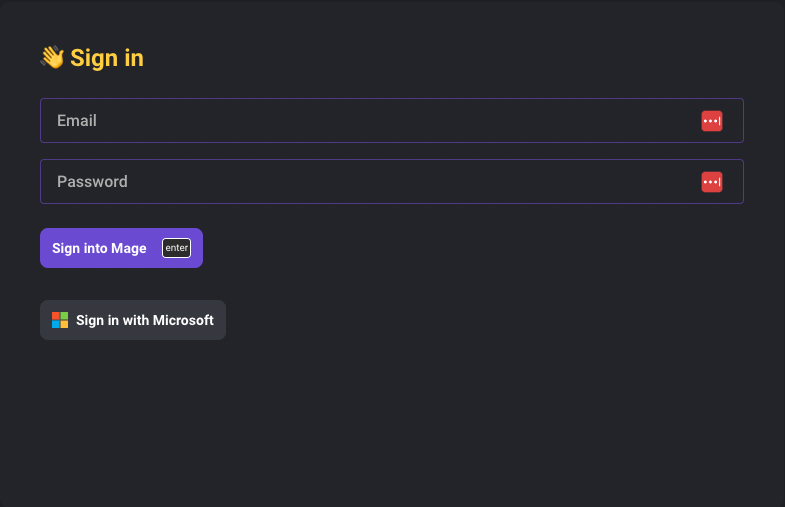

You should now see the “Sign in with Microsoft” button when you start Mage and attempt to sign in. You may need to restart your Mage server for the changes to take effect.
Sign in with Microsoft
You will need to get your organization’s Tenant ID. You can find this in the Azure Portal:
1

Log into your Azure Portal

2

Click into the Microsoft Entra ID service

Azure Active Directory
3

Navigate to the directory you want users to sign into

4

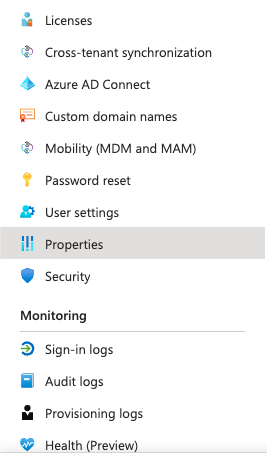

Click 'Properties' in the left sidebar

Active Directory Properties
5

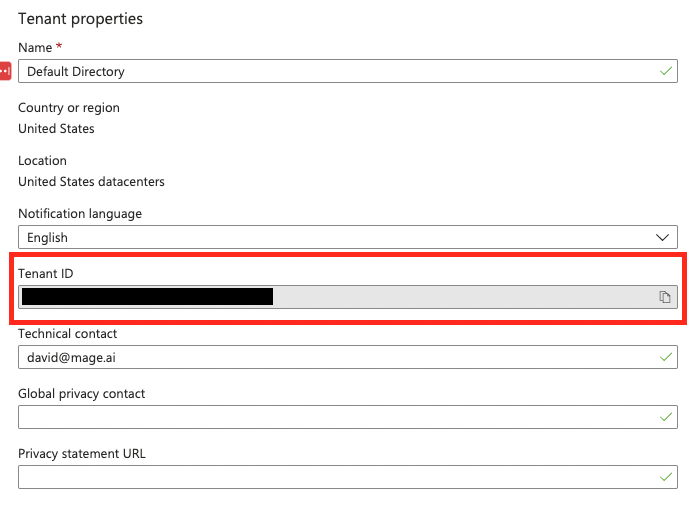

Copy the value under Tenant ID

Active Directory Tenant ID
6

Set environment variable for Mage

Once you have found your tenant ID, you will need to set the following environment variable in your Mage setup.
NameACTIVE_DIRECTORY_DIRECTORY_ID
Value<tenant_id>
You should now see the “Sign in with Microsoft” button when you start Mage and attempt to sign in. You may need to restart your Mage server for the changes to take effect.
Sign in with Microsoft

​
Configurable environment variables

To configure the environment for Microsoft Azure Cloud and Microsoft Azure Gov Cloud sign-in, you need to set the following environment variables:
  1. You can set the AZURE_HOST environment variable to one of the following based on your environment:
Public cloud host url: "https://login.microsoftonline.com"
China host url: "https://login.chinacloudapi.cn"
Germany host url: "https://login.microsoftonline.de"
Government host url: "https://login.microsoftonline.us"
  1. You can set the MICROSOFT_GRAPH_API_HOST environment variable to one of the following basd on your environment:
Microsoft Graph global service: "https://graph.microsoft.com"
Microsoft Graph for US Government L4: "https://graph.microsoft.us"
Microsoft Graph for US Government L5 (DOD): "https://dod-graph.microsoft.us"
Microsoft Graph China operated by 21Vianet: "https://microsoftgraph.chinacloudapi.cn"

​
Map AD role to Mage role

You will need to have created your own application and have app roles in order for this mapping to work.

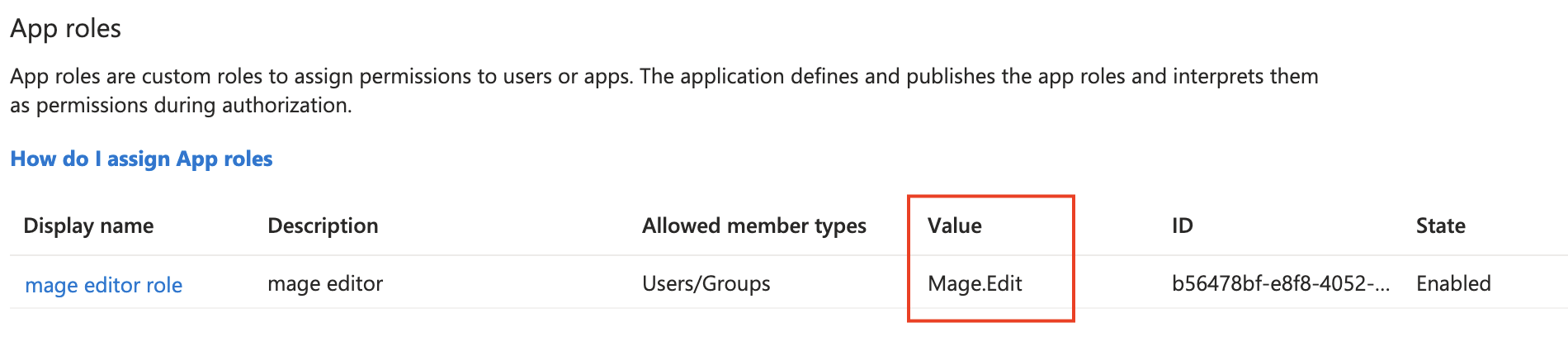

You can map Active Directory roles to Mage roles by setting the ACTIVE_DIRECTORY_ROLES_MAPPING environment variable. The value should be a JSON object with the AD role as the key and the name of the Mage role as the value. For example: export ACTIVE_DIRECTORY_ROLES_MAPPING='{"Mage.Edit": "Editor", "Mage.Admin": "Admin"}' You can find the AD role value in the App roles section of your application in the Azure Portal.
App roles
When a user signs in for the first time with their Microsoft account, Mage will use this mapping to automatically add the appropriate roles to the user.
